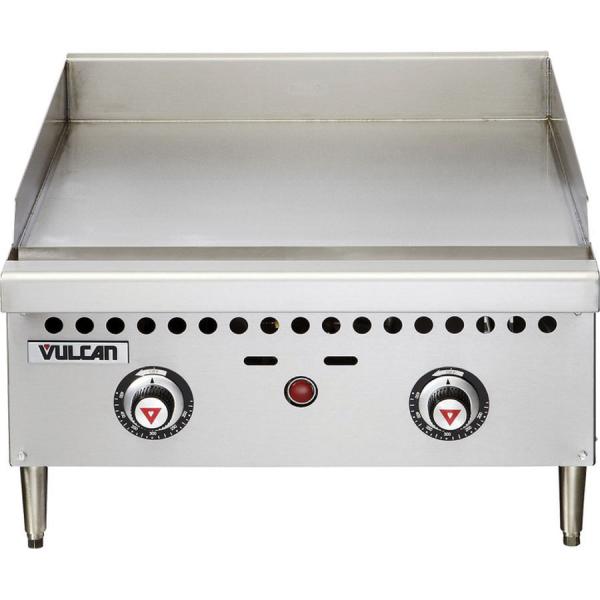

Griddle, countertop, gas, 24″ W x 20-1/2″ D cooking surface, 1″ thick polished steel griddle plate, (2) burners, fully welded, embedded mechanical snap action thermostat every 12″, millivolt pilot safety, low profile, 4-1/2″ grease can capacity, (1) drawer, stainless steel front, sides & front top ledge, 4″ adjustable legs, 50,000 BTU, CSA, NSF

Applications

Key Features

• 1 in thick polished steel griddle plate welded to 3-1/4 in stainless steel back, tapered side splashes and stainless steel grease trough
• Fully welded stainless and aluminized steel chassis frame
• 12-1/2 in cooking height on 4 in adjustable legs
• (1) 25000 Btu/hr “U” shaped aluminized steel burner for every 12 in of griddle width
• One infinite heat control valve per burner
• Standing pilot ignition system
• High capacity 4-1/2 qt capacity grease can
• 3/4 in rear gas connection and convertible gas pressure regulator for LP service
• Constructed standard for natural gas service, LP conversion kit supplied with unit
• Stainless steel front, sides and front top ledge

Notice for Residential Use: The warranty will not be honored for residential / non-commercial use of this equipment.

Alternate Part Numbers:  VCRG24T

Specifications

Manufacturer	Vulcan Hart
Model #	VLCN-VCRG24-T
Mfg Part #	VCRG24-T
Priced Per	Each
Shipping Weight	243.00 pounds
Shipping Information	Ships via Freight Truck Only
Type	Low Profile
Power Type	Gas
Capacity	4.5 qt
Cooking Area	24 in W x 20.5 in D
BTU Rating	50000 Btu/hr
Burner Style	U-Shaped
Number of Burners	2
Control Type	Snap-Action Thermostat
Number of Controls	2
Housing Material	Stainless and Aluminized Steel
Plate Thickness	1 in
Color	Silver
Inlet Size	0.75 in Rear
Installation Type	Countertop
Temperature Rating	200 to 450 deg F
Height	16 in
Width	24 in
Depth	27 in
